These are the most common tube bending dies that we sell. This is a list of recommended sizes for those looking to get into fabrication.
Material Size – refers to actual outside diameter of the tube as measured with a caliper.
CLR – stands for Center Line Radius, meaning the bend radius as measured from the center rotation point of the die to the middle of the tube. (see image)
Minimum Wall – denotes the minimum recommended wall thickness for consistent high quality wrinkle free bends at the specified radius. Please call for recommendations with aluminum.
Max Degree of Bend – Dies can be purchased to bend up to 120 degrees or up to a full U-bend of 180 degrees after springback

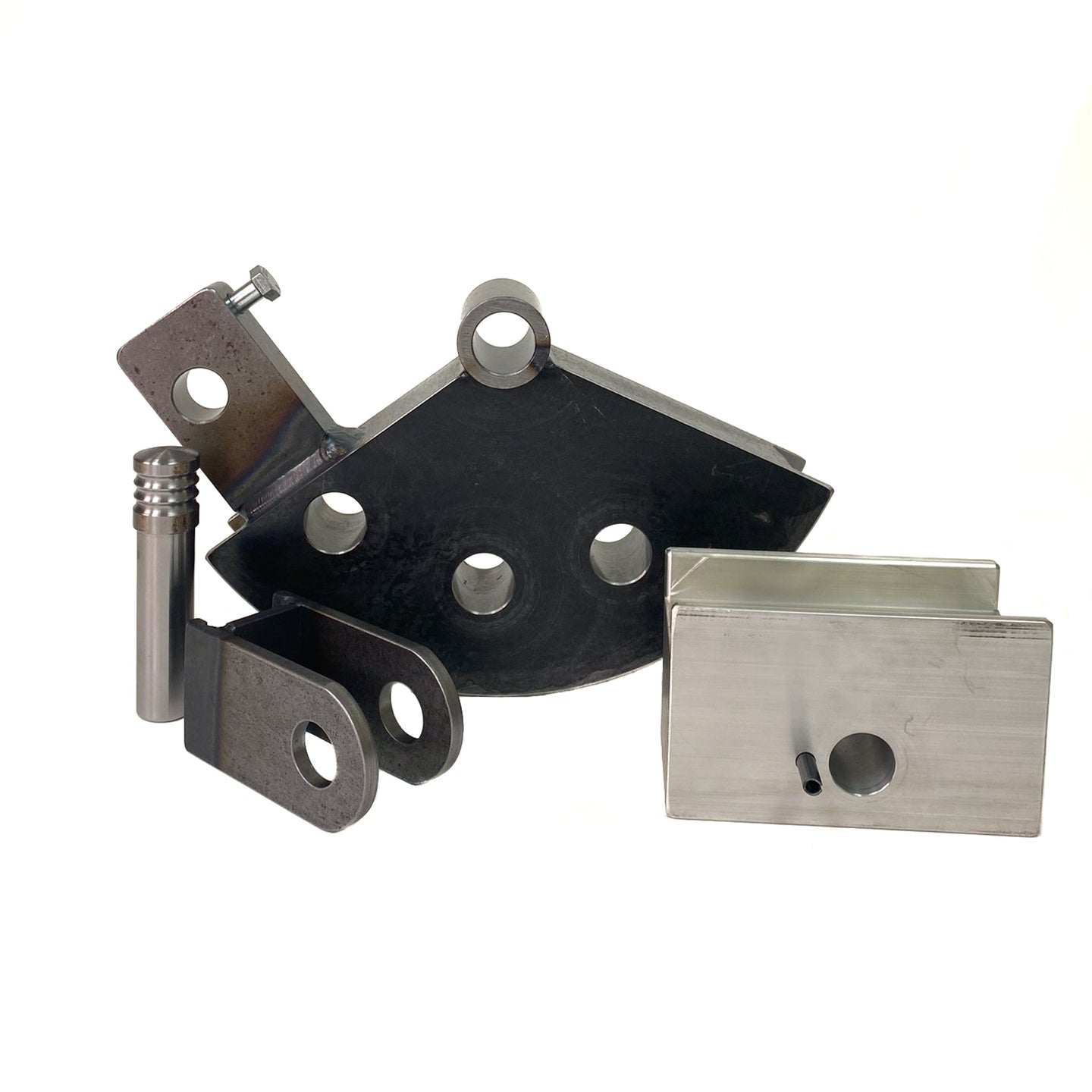

Includes:
- Forming Die
- Follower Block
- U-Strap
- U-Strap Pin
All of our dies have a 1.0" center pin hole and .875" drive pin holes. They are designed to work specifically with JMR tubing benders. However, many customers have used them in JD Squared Model 3 benders, Pro Tools 105 Benders, and imported Chinese copies of our bender such as Woodward Fab, Eastwood, and Vevor Benders. We cannot guarantee that these bender dies will fit those benders.
JMR Manufacturing
Most Popular Die Sets
- Regular price
- $175
- Regular price
- $175
These are the most common tube bending dies that we sell. This is a list of recommended sizes for those looking to get into fabrication.
Material Size – refers to actual outside diameter of the tube as measured with a caliper.
CLR – stands for Center Line Radius, meaning the bend radius as measured from the center rotation point of the die to the middle of the tube. (see image)
Minimum Wall – denotes the minimum recommended wall thickness for consistent high quality wrinkle free bends at the specified radius. Please call for recommendations with aluminum.
Max Degree of Bend – Dies can be purchased to bend up to 120 degrees or up to a full U-bend of 180 degrees after springback
Includes:
- Forming Die
- Follower Block
- U-Strap
- U-Strap Pin
All of our dies have a 1.0" center pin hole and .875" drive pin holes. They are designed to work specifically with JMR tubing benders. However, many customers have used them in JD Squared Model 3 benders, Pro Tools 105 Benders, and imported Chinese copies of our bender such as Woodward Fab, Eastwood, and Vevor Benders. We cannot guarantee that these bender dies will fit those benders.
Customers Also Bought
Customer Reviews

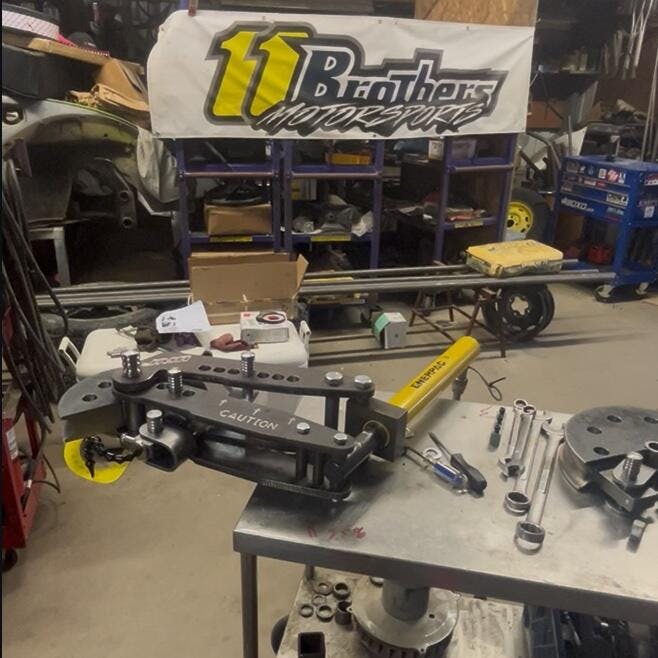

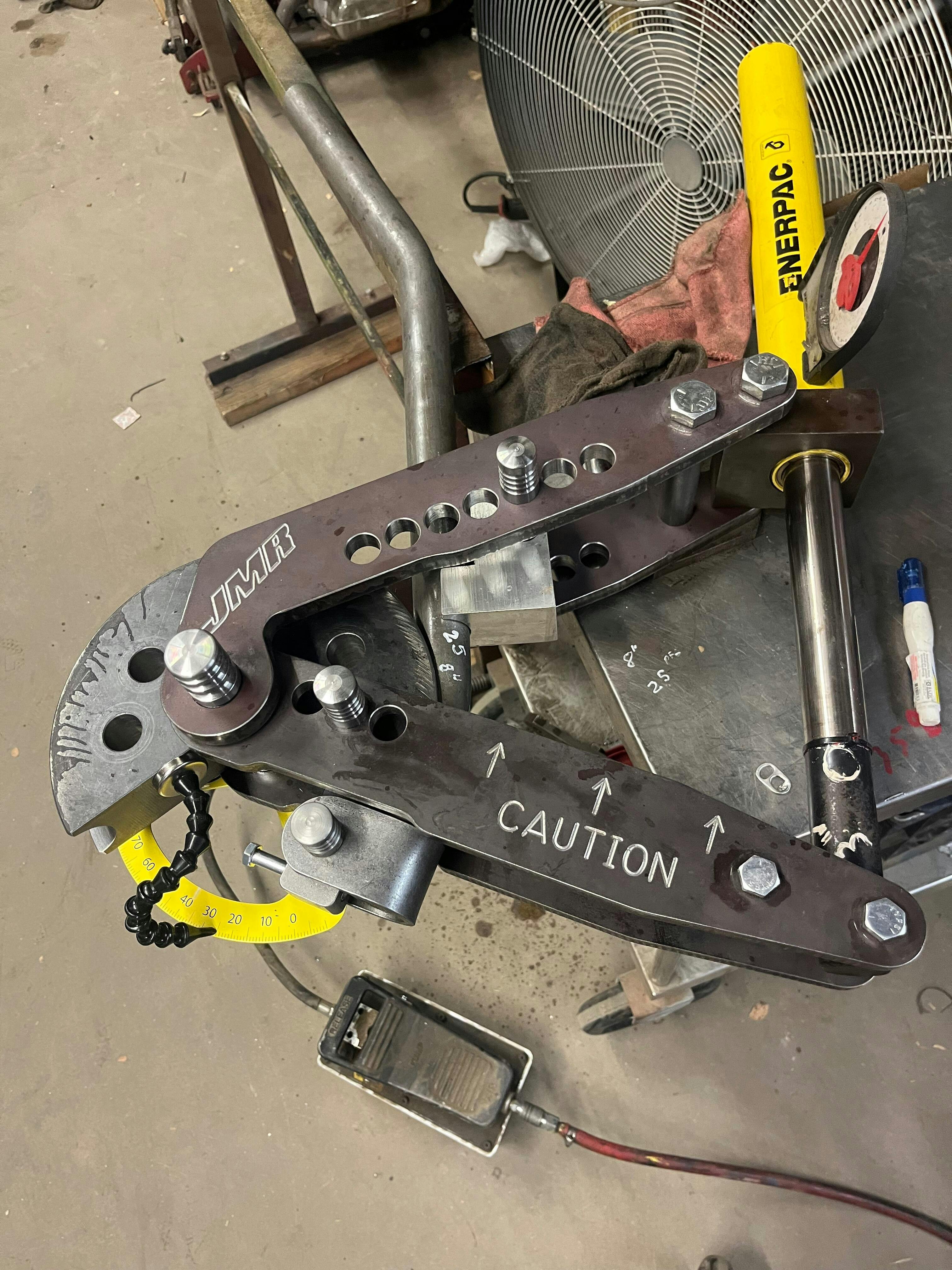

From a long time JMR bender user.
