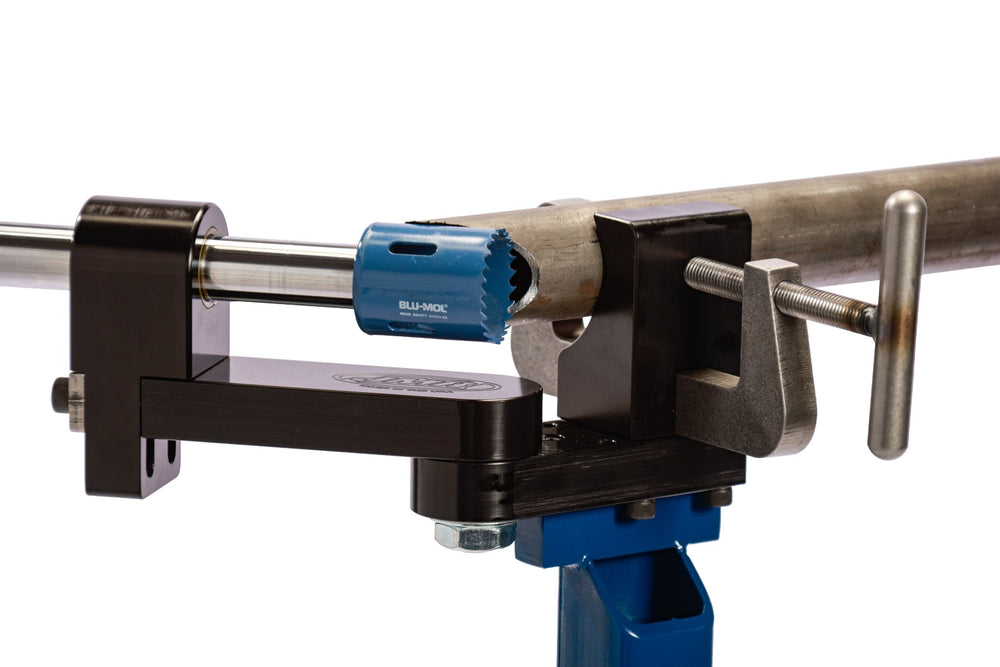

RaceLine Tube Notcher
A practical choice for race shops and fabricators looking for a capable, straightforward notcher.
View RaceLineTube and Pipe Notchers

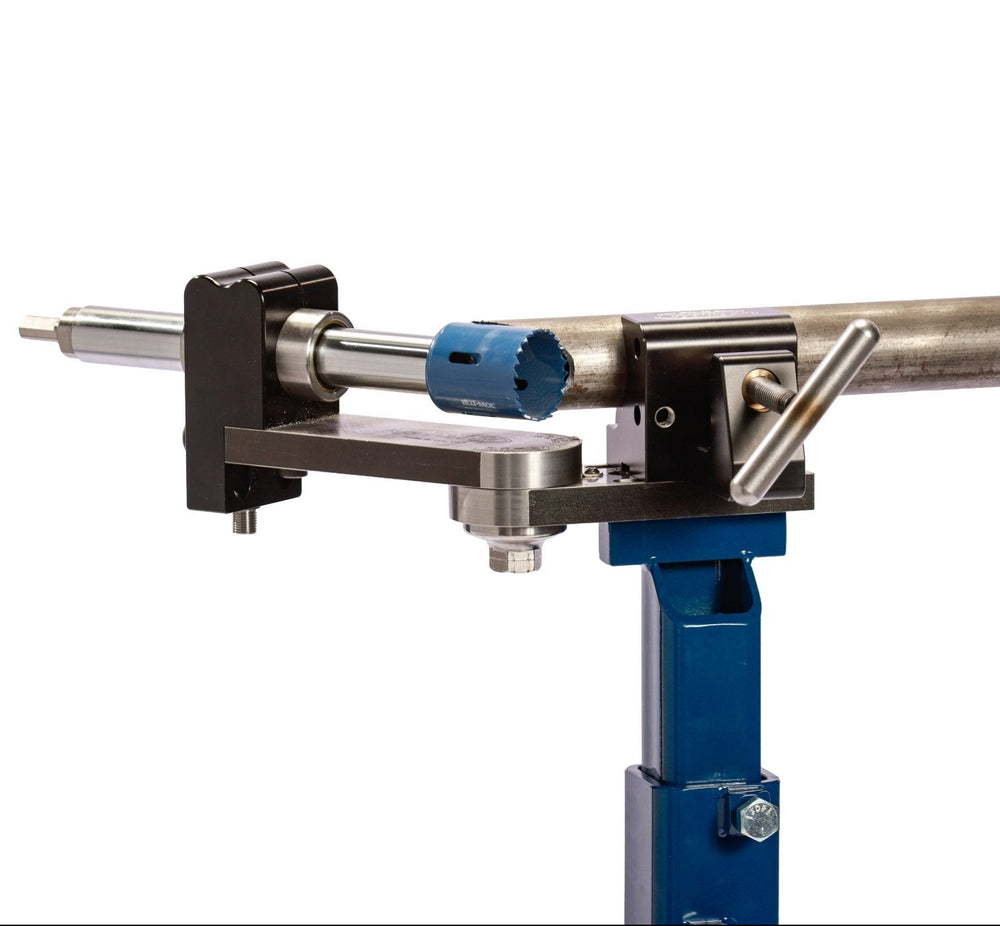

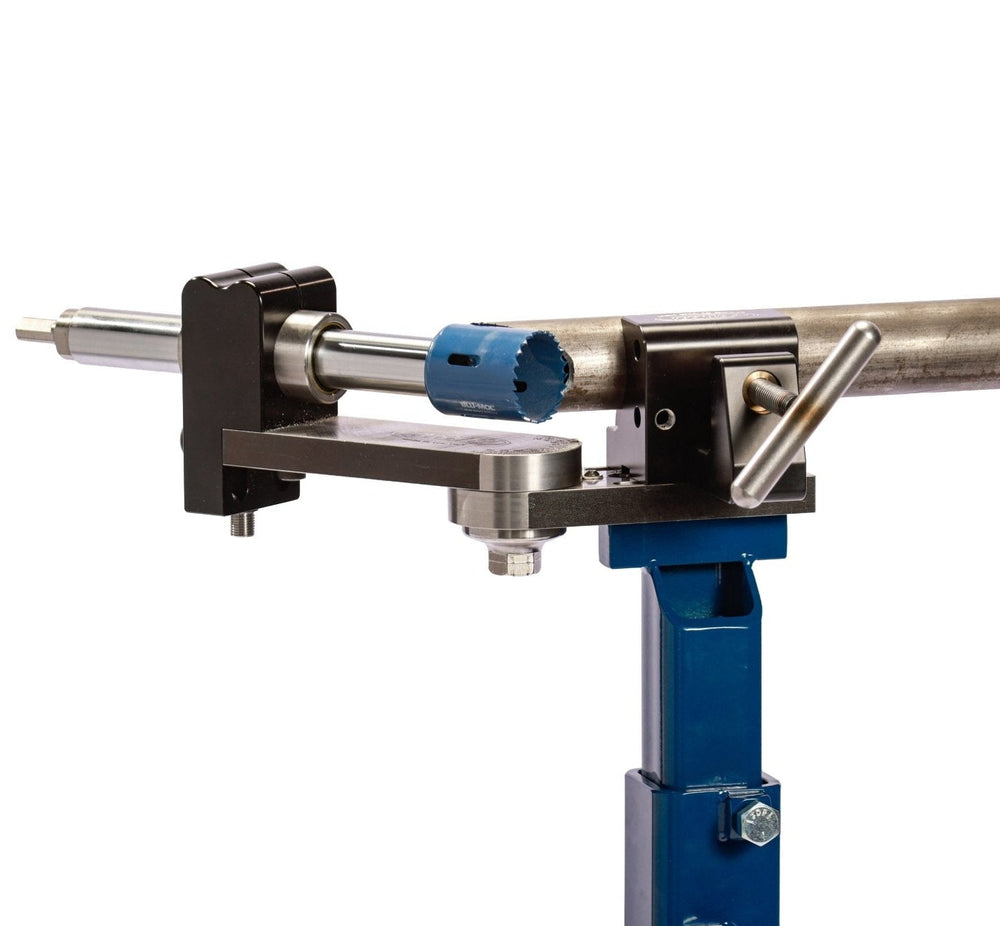

Industrial Tube Notcher
Built for demanding production work where a robust shop tool and repeatable setups matter.
View Industrial| Spec | RaceLine Tube Notcher | Industrial Tube Notcher |
|---|---|---|
| Price | $395 | $795 |
| Best for | First notcher, service trucks, bigger tube | Daily production, schools, thin-wall work |
| Body | CNC billet aluminum, hard anodized | Heat-treated steel, machined from bar stock |
| Round tube | Up to 3" OD | Up to 2-1/2" OD |
| Pipe | Up to 2-1/2" pipe | Up to 2" pipe |
| Square tube | Flat or on the diamond | Flat or on the diamond |
| Notching arc | 210° | 210° |
| Offset notches | Up to 1", returns to zero | Up to 1", set screw dials to .001", no shims |
| Shaft | 1" | 1-1/8" hard chrome, induction hardened |
| Bearings | Sealed needle bearings | Needle bearings, re-tightening sleeve |
| Hole saw threads | 1/2-20 and 5/8-18 | 1/2-20 and 5/8-18 |
| Drive | 1/2" drill | 1/2" drill |
| Size | 12" × 6" × 5" | 12" × 8" × 6" |
| Made in | Paso Robles, California | Paso Robles, California |
Frequently asked questions
How do I choose between RaceLine and Industrial?
Start with how often you notch, how repetitive the work is, and the tubing and dies required. Review each product's current specifications before ordering.
Can JMR help me select a tube notcher?
Yes. Share the material, tube dimensions, production volume, and the type of notches you need so the team can point you toward a suitable setup.
