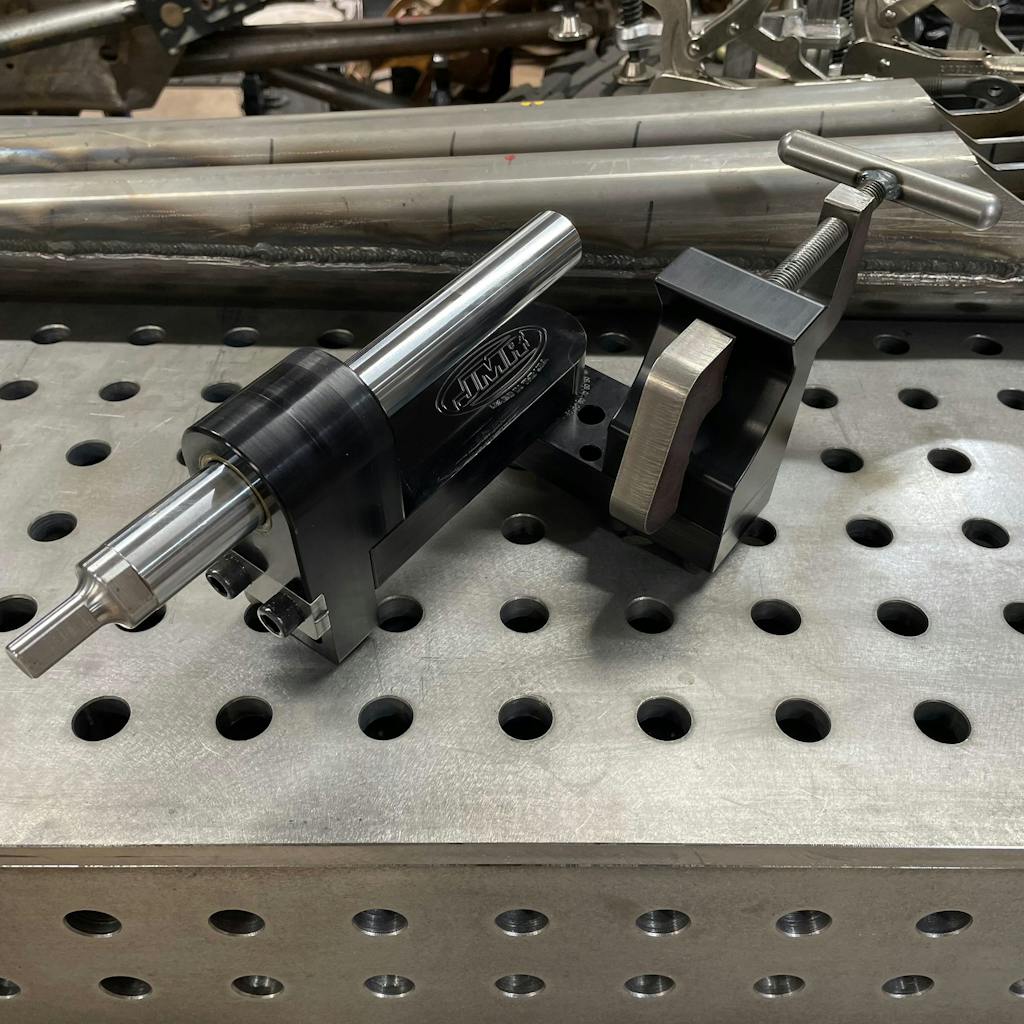

The RaceLine Tube and Pipe Notcher is the perfect tool if you want to save time and money when fabricating. Tube Notchers allow you to easily make accurate and repeatable notches fast and clean, without having to use a grinder. Our notchers are built with maximum rigidity for safety and to promote long hole saw life. It is not uncommon to get 100's of notches out of a single hole saw. This notcher can also be clamped to an existing structure for boring holes or fixing damaged tubes.
This notcher has a large 3" capacity, and can notch anywhere in a 210 degree arc. The innovative design of our adjustable bearing housing allows you to accurately make offset notches while still maintaining an absolute zero point being flush with the arm. Compare that to our competitors' notchers where every time you offset notch you have to re-find your zero point, which wastes time, material, and money.
Our tube notchers are rigid enough to cut very small amounts of tube while staying stable. This means if you notch a piece slightly too long the first time, you can simply move the tube forward a fraction of an inch and re-cut it without the use of a hand grinder or file. When you use one of our tube notchers, you get a perfect cope, every time. This means stronger joints, easier welds, and faster assembly time during fabrication.
The RaceLine Tube Notcher has easy to read angle measurements, an ergonomic handle, machined adapters, and precision milled part faces that make this notcher extremely easy to use. Save time, money, and get better results using a RaceLine Tube and Pipe Notcher.
Features:
- 100% Made in USA
- 3" capacity
- Hard-Anodized for maximum durability
- Notch round tube, pipe, square, and thin wall tubing
- Double v-clamp vise allows square to be held flat or on diamond
| Capacity | |
|---|---|
| Round tube | Up to 3" OD |
| Pipe | Up to 2-1/2" pipe |
| Square tube | Held flat or on the diamond |
| Materials | Steel, stainless, aluminum and thin-wall tube |
| Cutting | |
| Notching arc | 210° |
| Offset | Up to 1", returns to zero |
| Hole saw threads | 1/2-20 and 5/8-18 |
| Largest hole saw | 3" |
| Drive | 1/2" drill at 200 to 600 RPM |
| Construction | |
| Body | CNC billet aluminum, hard anodized |
| Arms | 1" thick |
| Shaft | 1" |
| Bearings | Sealed needle bearings |
| Pivot | Thrust bearing |
| Vise | Double V-clamp |
| Size and support | |
| Dimensions | 9.5" × 5" × 5.5" |
| Weight | 10 lb |
| Model | TN-300 |
| Made in | Paso Robles, California, USA |
| Warranty | 1-year limited |
What's the difference between the raceline and industrial notcher?
What's the capacity?
What kind of drill should i use?
Can i notch on an existing structure?
Should i use lube?
