JMR TB-AH250 Air/Hydraulic Tubing Bender

  • Sale
  • Regular price $1,295.00
Shipping calculated at checkout.



Includes:

  • Bender
  • Cylinder with rapid air return
  • Air/hydraulic pump and hoses

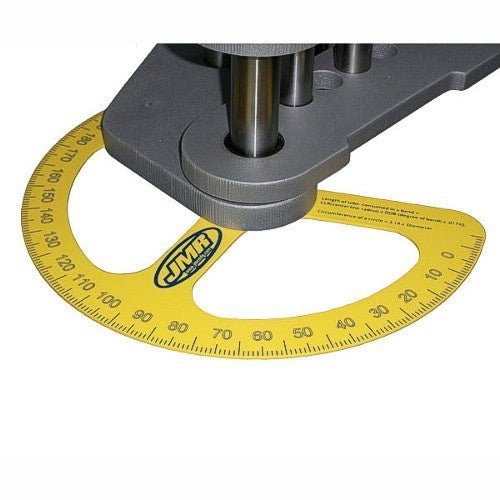

  • Steel degree ring and pointer
  • 2-1/2 inch OD capacity
  • Die sets sold separately

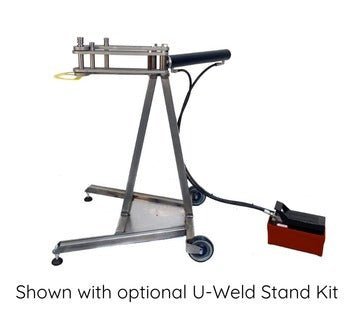

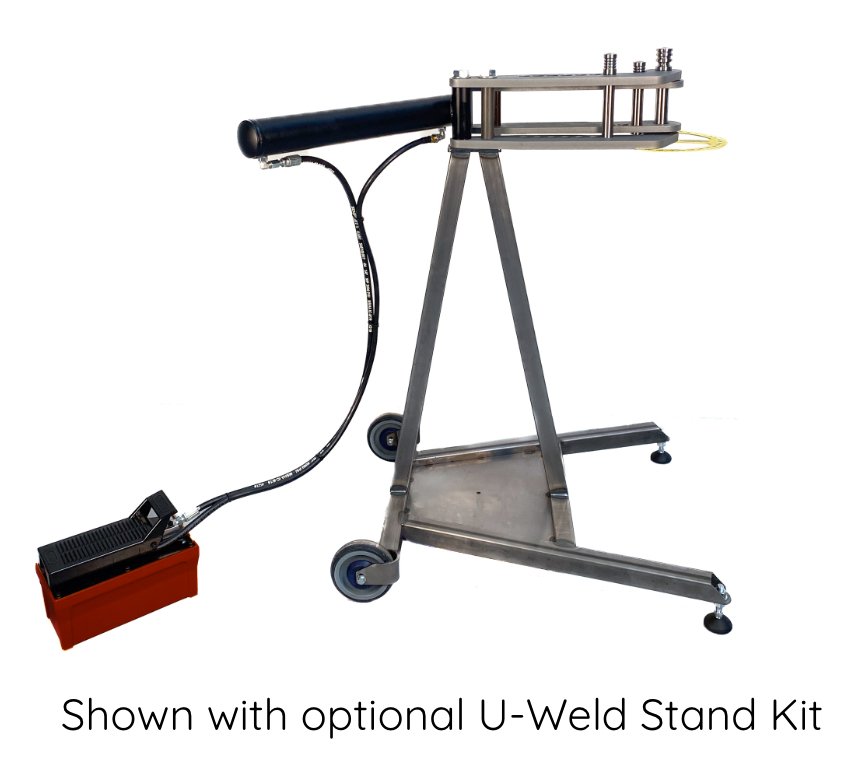

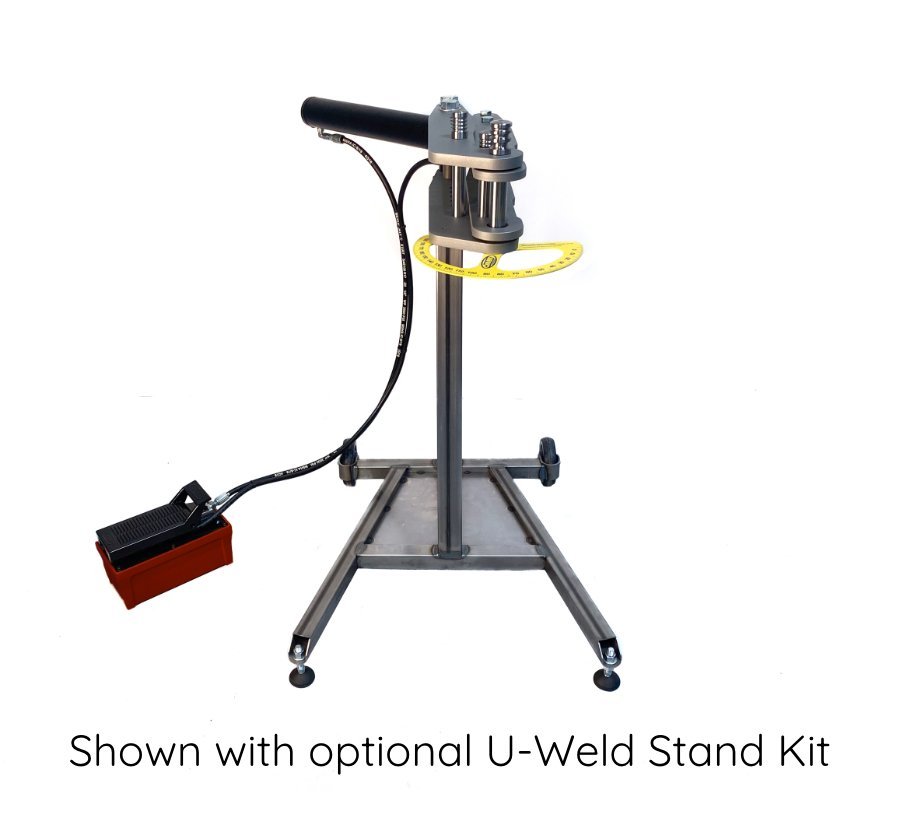

  • STAND NOT INCLUDED

Spcifications:

  • Mild Steel Capacity (inches): 2-1/2 x .120
  • Round Chrome Moly Capacity (inches): 2 x .188
  • Round Aluminum Capacity (inches): 2-1/2 x .120
  • Nominal PIPE Capacity: 2 inch schedule 40
  • Square Mild Steel Capacity (inches): 2 x .120
  • Minimum OD (inches): 1/2
  • Bending Style: rotary draw
  • Min Center Line Radius (inches): 3
  • Max Center Line Radius (inches): 8
  • Max Degree of Bend: 180
  • Motor: 110 volt
  • Control Method: foot pedal control
  • Maximum OD (inches): 2-1/2
The Deluxe JMR TBAH-250 air/hydraulic tube bender is a precision machined unit that offers large capacity, a fast hydraulic system, and unique portability. With features such as nylon/graphite bushings at the pivot points, military grade tough-coat finish, and lifetime warranty billet steel die sets - the JMR bender is built to last!

The JMR air/hydraulic pump is easily operated with a foot pedal control and 90 psi of air pressure. All JMR hydraulic benders feature a powered cylinder return for faster cycle times and more repeatable zero point. Dies are available for round and square tubing well as nominal pipe sizes (NPS). Optional, is a long stroke cylinder which can accomplish 90 degrees of bend in one stroke!
