Kit Includes:
- Raceline Bender
- Raceline Hole Saw Notcher
- Die #1 - 1 inch OD x 3 inch CLR, 120 degree die set
- Die #2 - Choice of 1-1/2, 1-5/8 or 1-3/4 inch die sets
- U-weld pedestal kit for bender
- Notcher Mount

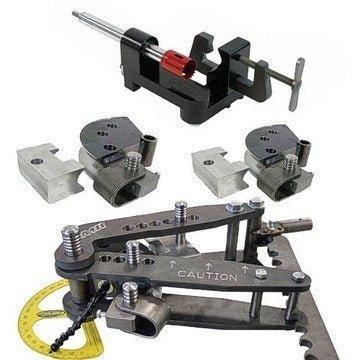

The RaceLine Fab Pack is the perfect way to get started in tube fabrication for a low price. The kit includes a manual tube bender and notcher with 2 popular die sets, along with a pedestal kit and vice mounting block for the notcher.

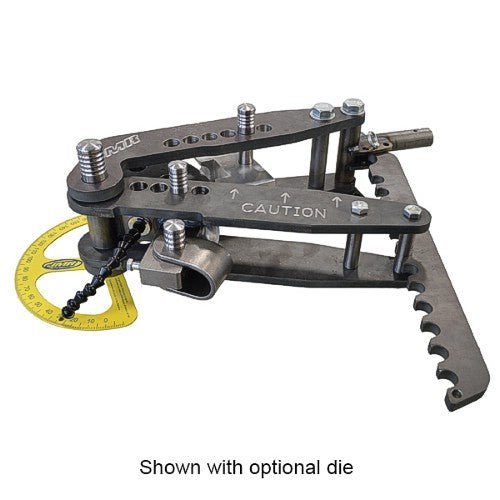

The RaceLine Series bender by JMR is the highest value American-Made tubing bender on the market. It features the same high-strength steel arms, center pivot bushings, and heat treated pins that our high-end hydraulic benders have, as well as a manual 3-speed design that provides leverage to bend up to 2" tube with ease. The JMR RaceLine Tube Bender is the perfect tool for all of your fabrication needs. It can be upgraded to hydraulics at any time, which increases the capacity to 2.5"
The RaceLine Hole Saw Notcher is constructed from CNC machined billet aluminum with heavy duty 1 inch thick arms, and sealed needle bearings to support the large 1 inch OD shaft. The notcher features a 3 inch OD capacity, and can notch anywhere in a 210 degree arc around the end of the tube. Offset notches up to 1 inch can be performed with ease while the unique shaft support design allows a positive, accurate return to the zero point for a centered notch. Degree reference points are engraved into the arms of the notcher, and the frame design allows the notching angle to be easily double checked with an angle finder.
The included pedestal kit gives you the top and bottom plates with correct mounting holes to build your own floor mount bender pedestal. Just weld in a piece of round or square tubing at your desired height and bolt to the floor.
JMR Manufacturing
Raceline Bender/Notcher Fab Pack
- Regular price
- $1,235
- Regular price
- $1,235
Kit Includes:
- Raceline Bender
- Raceline Hole Saw Notcher
- Die #1 - 1 inch OD x 3 inch CLR, 120 degree die set
- Die #2 - Choice of 1-1/2, 1-5/8 or 1-3/4 inch die sets
- U-weld pedestal kit for bender
- Notcher Mount
The RaceLine Fab Pack is the perfect way to get started in tube fabrication for a low price. The kit includes a manual tube bender and notcher with 2 popular die sets, along with a pedestal kit and vice mounting block for the notcher.
The RaceLine Series bender by JMR is the highest value American-Made tubing bender on the market. It features the same high-strength steel arms, center pivot bushings, and heat treated pins that our high-end hydraulic benders have, as well as a manual 3-speed design that provides leverage to bend up to 2" tube with ease. The JMR RaceLine Tube Bender is the perfect tool for all of your fabrication needs. It can be upgraded to hydraulics at any time, which increases the capacity to 2.5"
The RaceLine Hole Saw Notcher is constructed from CNC machined billet aluminum with heavy duty 1 inch thick arms, and sealed needle bearings to support the large 1 inch OD shaft. The notcher features a 3 inch OD capacity, and can notch anywhere in a 210 degree arc around the end of the tube. Offset notches up to 1 inch can be performed with ease while the unique shaft support design allows a positive, accurate return to the zero point for a centered notch. Degree reference points are engraved into the arms of the notcher, and the frame design allows the notching angle to be easily double checked with an angle finder.
The included pedestal kit gives you the top and bottom plates with correct mounting holes to build your own floor mount bender pedestal. Just weld in a piece of round or square tubing at your desired height and bolt to the floor.
