The JMR Air/Hydraulic Tube Bender (TBAH-250) bends round tube, square tube and pipe in mild steel, DOM, 4130 chromoly, Docol, stainless and aluminum, without the pulling. It runs on 90 PSI shop air through a foot-pedal pump, and bends up to 2-1/2" OD x .120" wall round tube, 2" x .250" wall mild steel, and 2" Schedule 40 pipe. See our capacity charts for full size and wall ratings.

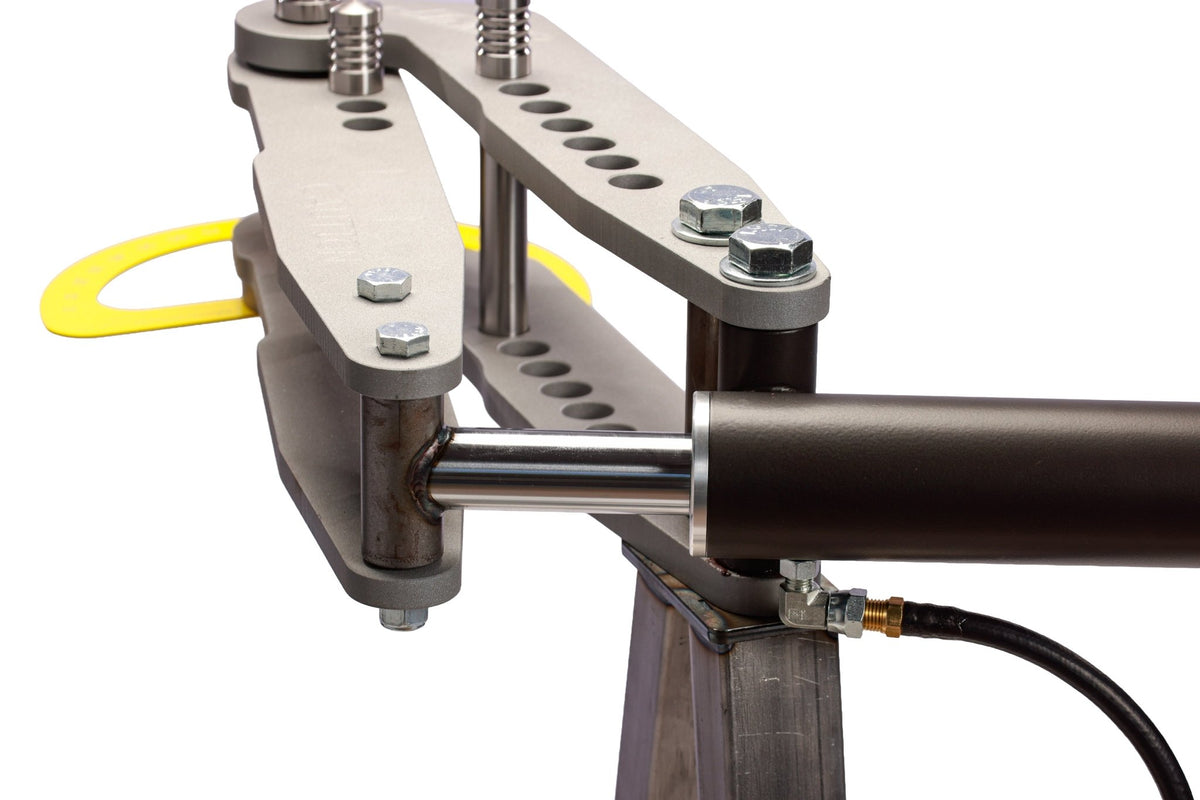

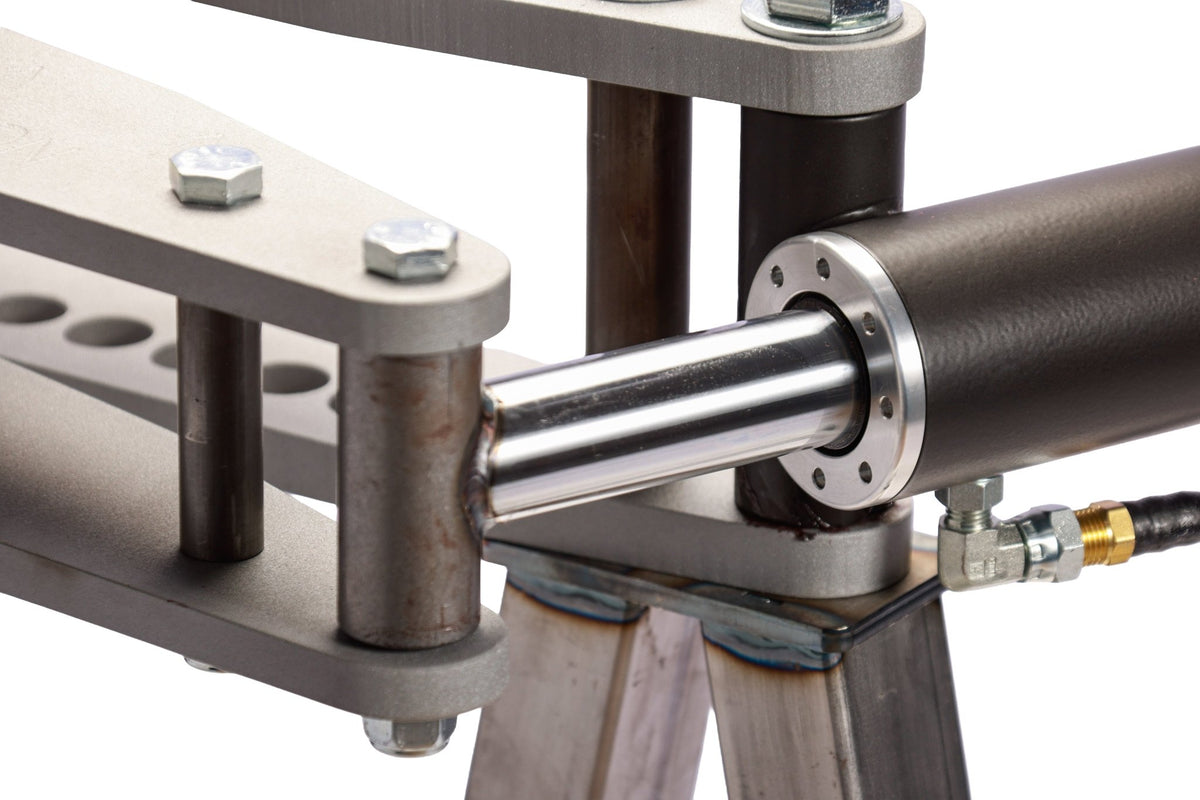

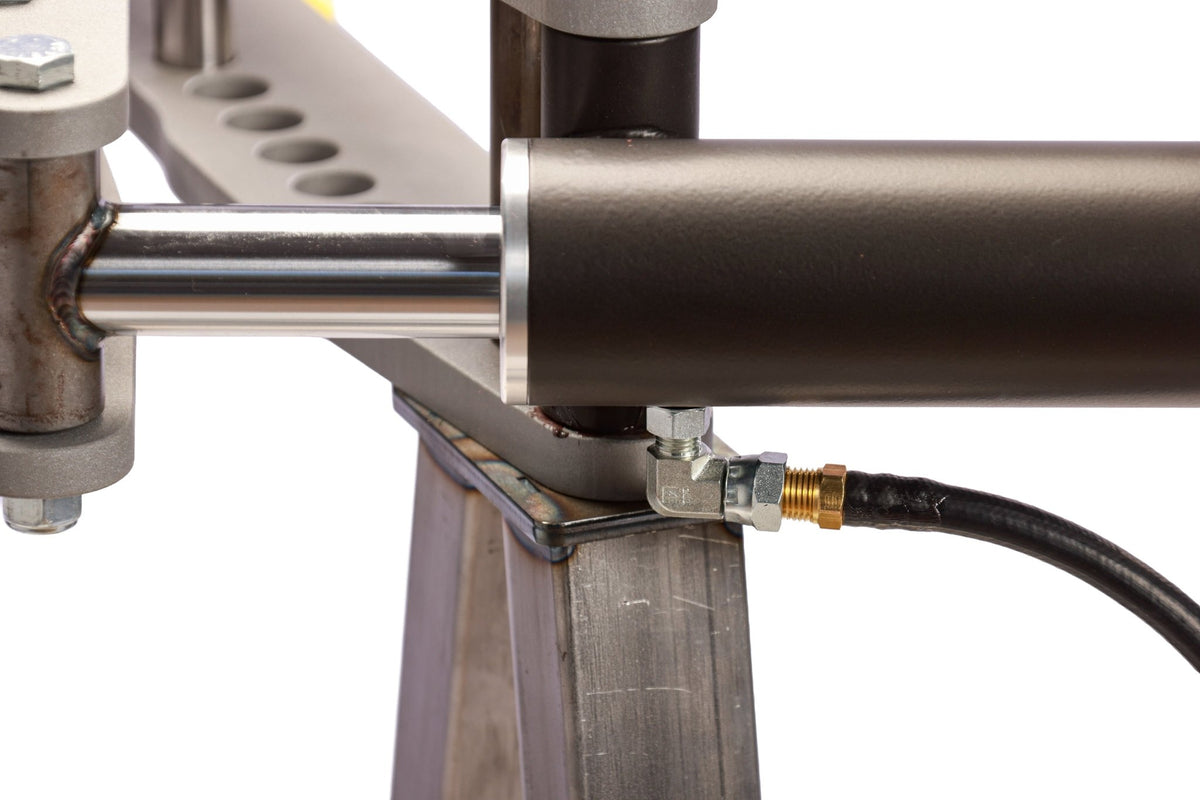

CYLINDER BUILT IN-HOUSE

We build the double-acting hydraulic cylinder ourselves instead of using an off-the-shelf unit. It's made for tube bending and powers both directions. The powered return pulls the ram back for you, so cycles are faster and the bender returns to the same zero point every time.

HANDS FREE FOOT PEDAL

The air-over-hydraulic foot pump leaves both hands free to hold and line up the tube. Heavy-wall material that would wear you out on a manual bender bends as easily as thin wall, and every bend takes the same effort.

90° IN ONE STROKE

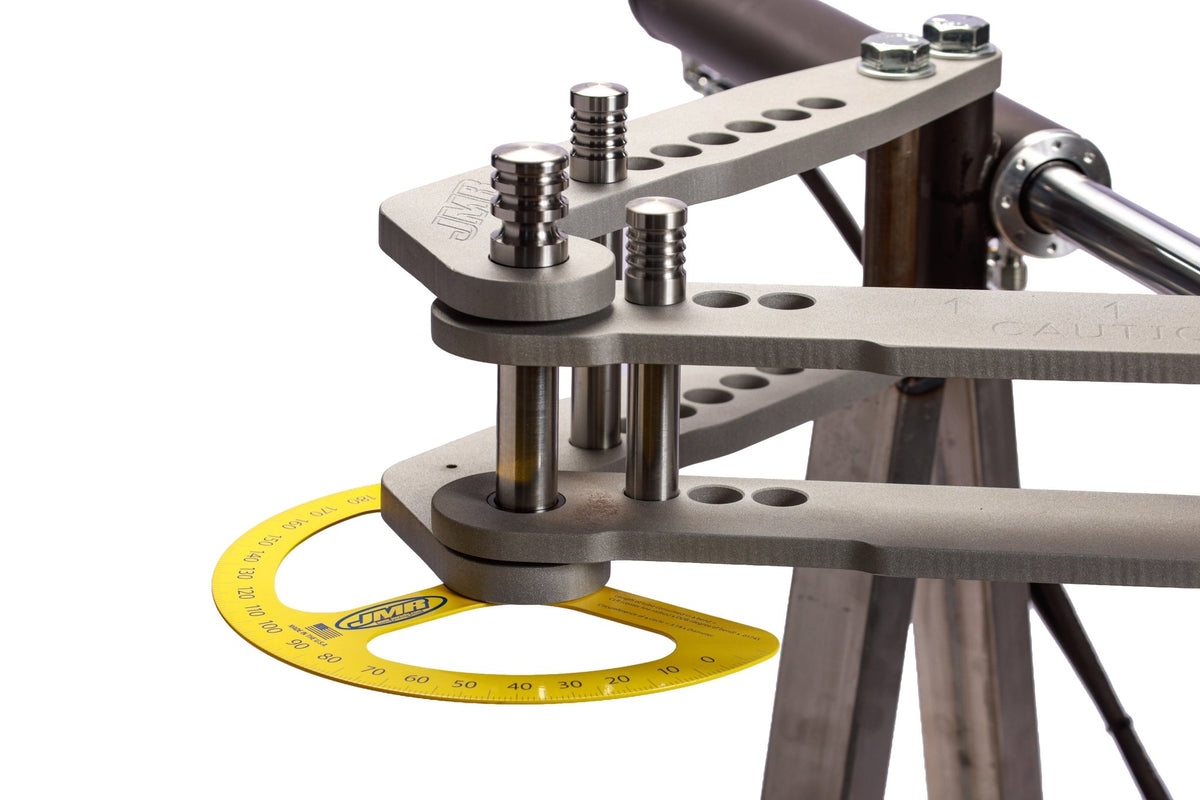

The standard cylinder reaches 180° with multiple strokes. Choose the optional 90° cylinder and its longer stroke makes a full 90° bend in one pass. With the right die, either cylinder bends to 180°. A degree wheel is included for accurate, repeatable angles.

SAME HEAD, SAME DIES

The TBAH-250 uses the same bender head, high-strength arms, heat-treated pins and center pivot bushings as every JMR bender. All JMR tube, pipe and square die sets fit it, so your dies carry over if you're stepping up from a manual bender.

MADE IN USA, STOCKED IN PASO ROBLES

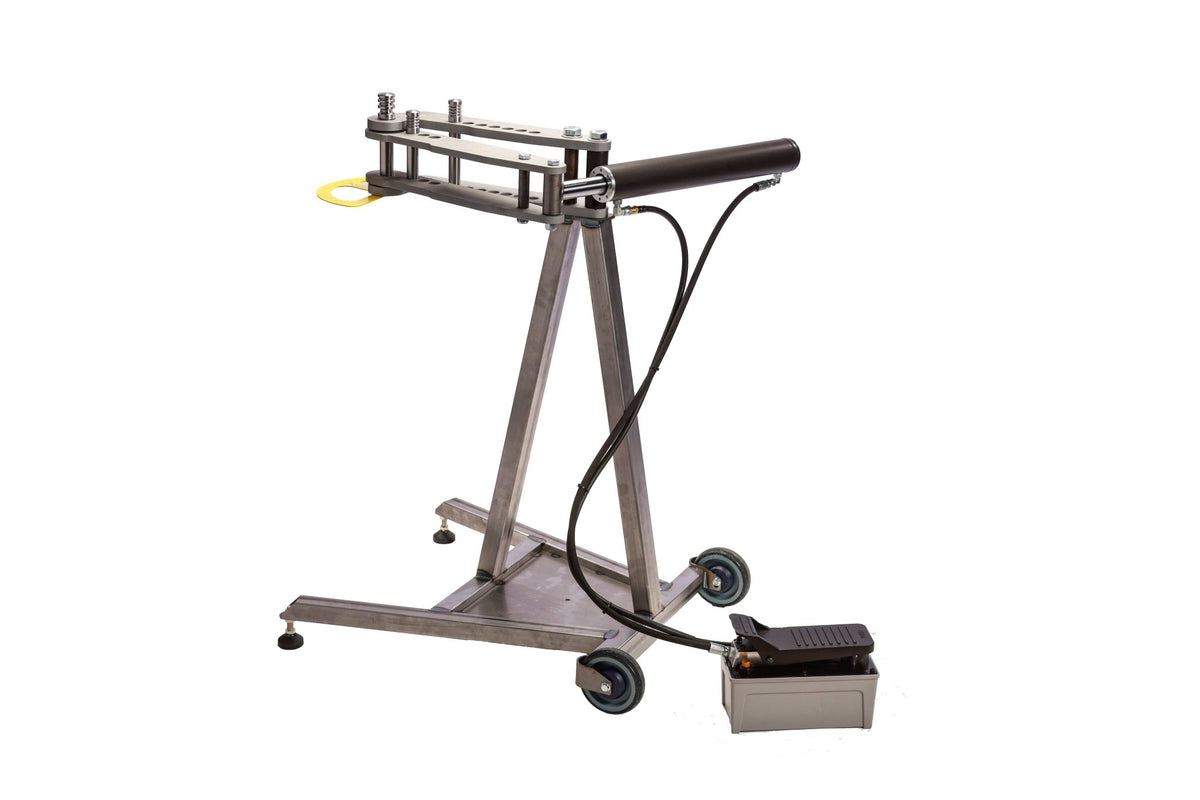

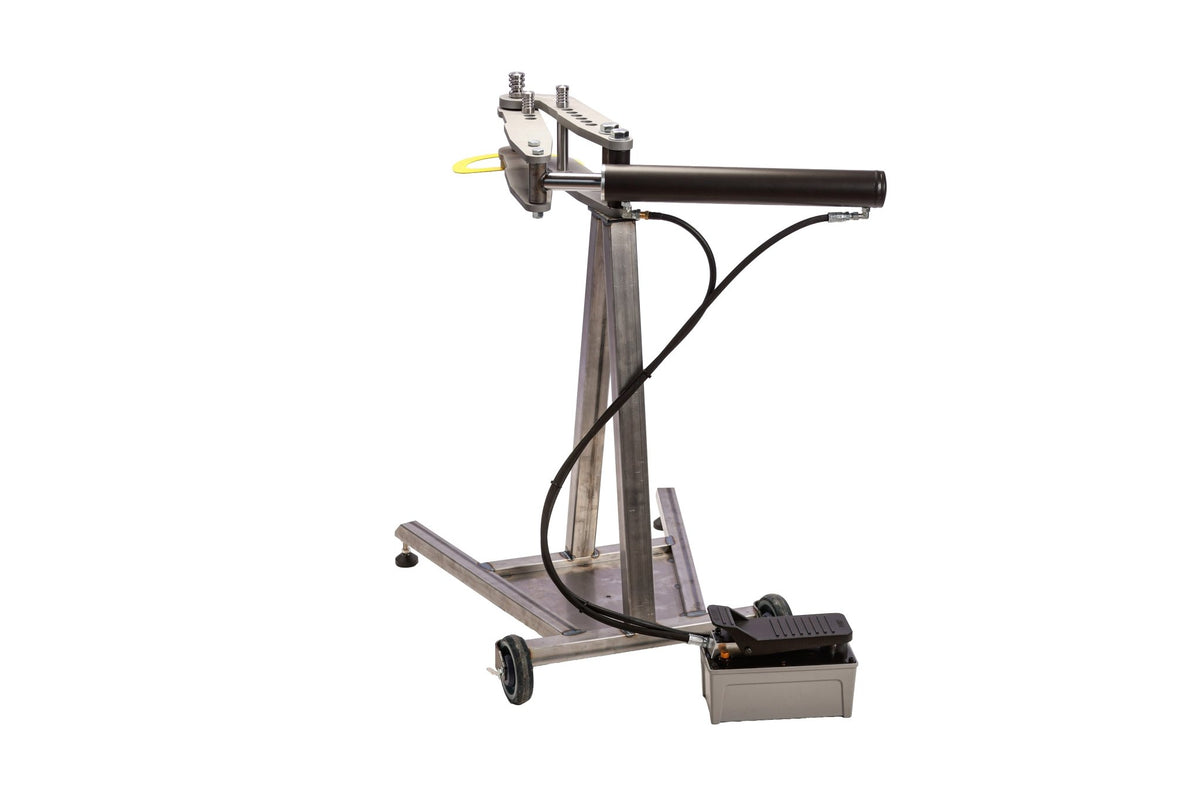

We build and stock the TBAH-250 in our Paso Robles, California shop, so it ships from inventory instead of a lead-time list. It comes with the bender, foot pump, cylinder, degree wheel, hoses and fittings. Add the U-Weld hydraulic stand, or choose from our stands and mounting. Die sets are sold separately, or get a complete setup with dies in our Bender Packages. Questions about your tube size or project? Call (805) 239-5972 or email info@jmrmfg.com

TBAH-250 INSTRUCTION MANUAL

Air/Hydraulic Tube Bender (TBAH-250) specifications
Capacity
Round tube Up to 2-1/2" OD (.120" wall mild steel)
Heavy wall 2" OD mild steel up to .250" wall
Chromoly 2" OD up to .120" wall
Square tube 2" mild steel up to .250" wall
Pipe 2" schedule 40
Bending
Bend capacity 180°
90° cylinder (optional) Full 90° bend in one stroke
Cylinder return Powered
Die sets All JMR tube, pipe and square die sets
Power
Drive Air over hydraulic
Air supply 90 PSI
Control Foot pedal
Cylinder Double acting, built in house
Construction
Arms High-strength steel
Pins Heat treated
Pivot Center pivot bushings
Finish Powder-coated arms, cylinder and foot pump
Size and support
Shipping weight 110 lb (120 lb with 90° cylinder, 149 lb with stand)
Included Bender, pump, hoses and fittings
Dies Sold separately
Model TBAH-250
Made in Paso Robles, California, USA
Warranty 1-year limited

What air supply does it need?
Shop air regulated to 90 PSI. The pump runs from a foot pedal.
What can it bend?
Mild steel round tube up to 2-1/2" OD with .120" wall, or 2" OD with .250" wall. It also bends 2" chromoly up to .120" wall, 2" square tube and 2" schedule 40 pipe. Limits vary with material hardness.
What is the difference between the standard and 90 degree cylinder?
The 90 degree cylinder has a longer stroke and makes a full 90 degree bend in one stroke. Both cylinders can bend up to 180 degrees, when using the correct die.
Are dies included?
No. Die sets are sold separately, so you only buy the sizes you need. Any JMR tube, pipe or square die set fits this bender.
What comes with it?
The bender, the air/hydraulic foot pump, cylinder, degree wheel, hoses and fittings. A U-Weld stand is optional.
What warranty does it come with?
A 1-year limited warranty.

Need dies?

Dies are sold separately, so you only buy the sizes you need. Every JMR die fits every JMR bender, manual or hydraulic, and they're in stock and ready to ship.

Shop all bender dies →

Want a head start? See our common die packages. Not sure which radius you need? Read the CLR guide or call us at (805) 239-5972.
